Residential Ultraviolet Sterilizer Systems
- For Well and Lake Water Sources

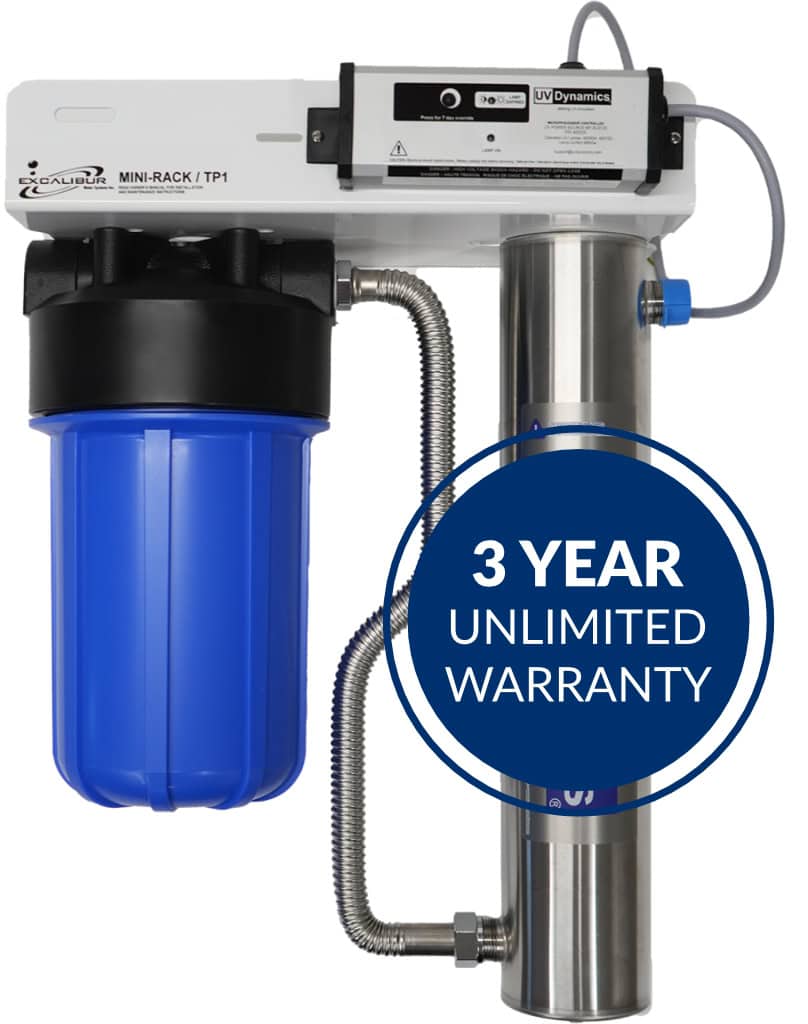

Premium Ultraviolet System
Chemical-free disinfection system for the removal of bacteria from drinking water.
Eliminates Harmful Microorganisms and Parasites
Removes Dirt, Grit and Sediment
Chemical removal filtration to reduce volatile chemicals and odors while improving taste. Sediment, dirt, and grit removal to 5 microns.
- Equipped to inactivate microorganisms and parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, coliform, and viruses not visible to the naked eye
- Easy to maintain and service with easy lamp and cartridge replacement and quick disconnect fittings
- UV lamp can be changed without interrupting the water flow and comes equipped with a connector that allows for easy removal of the lamp without any special tools
- Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation
- Equipped with a 5-micron sediment pre-filter to reduce particles in the water
- Includes a 5-micron acid-washed coconut shell carbon block filter to reduce taste, odor, and volatile chemicals
- High flow polypropylene filter housings with 3/4” or 1” full flow connections, available in either 10” or 20” versions
- Solid steel powder coated mounting bracket, compact design, and easy to install
- High flow rates
- Environmentally friendly
- No harmful chemicals
- Long life coated Ultraviolet lamps
- Passivated and polished stainless steel chambers
- Electronic ballast controller includes both visual and audio lamp failure alarms
- 99.9999% destruction of bacteria, virus, and protozoan cysts (Giardia Lamblia and Cryptosporidium)
- Product certified by CSA and CE
- True lamp current closed loop current control
- Annual lamp change timer
- Domed quartz sleeve for easy service
- No tools required for regular servicing
- Optional Solenoid Valve
- Optional intensity Ultraviolet Monitor
- 3-year unlimited warranty except for consumables

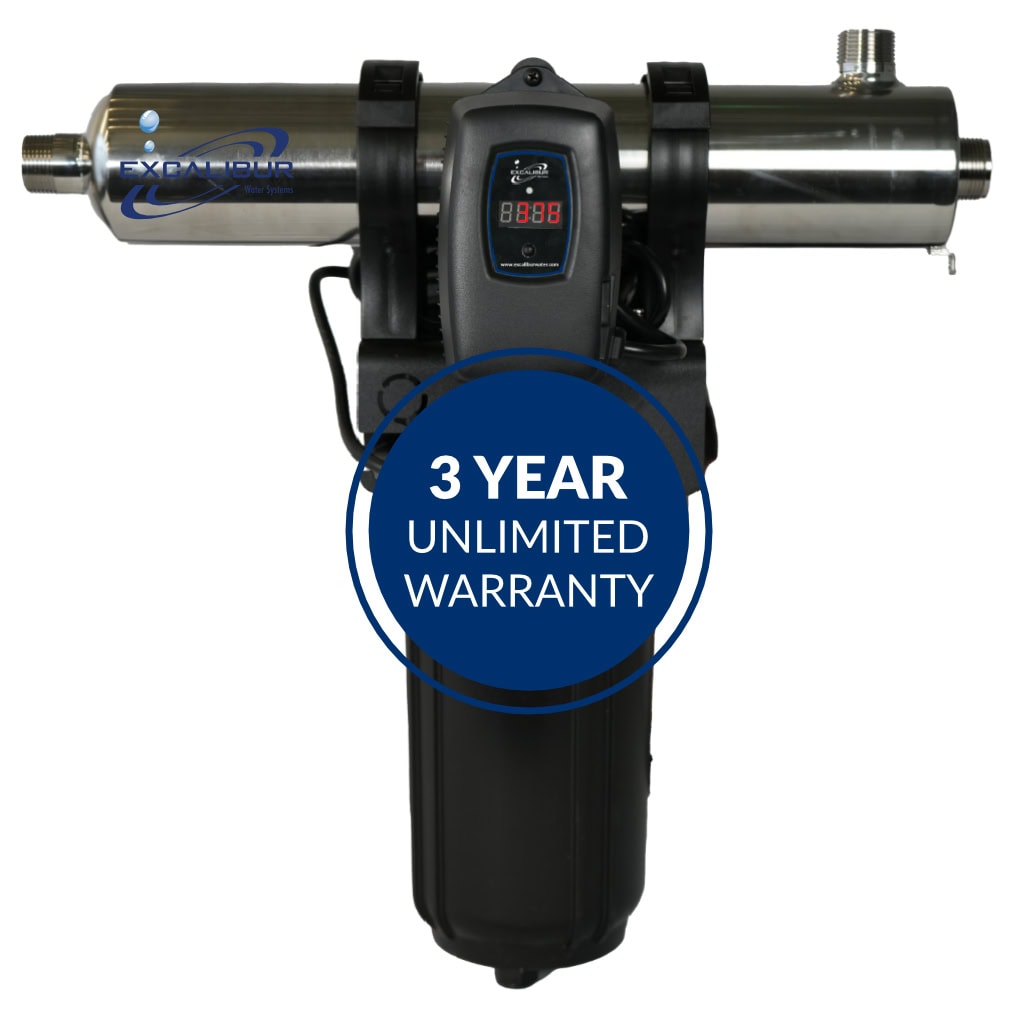

Signature Series Premium Ultraviolet System
Easy DIY installation on the home’s main water line, treating all incoming water at the point of entry.
99.9999% Contaminant Removal
Destruction of bacteria, virus (E.coli and Coliform) and protozoan cysts (giardia lamblia and cryptosporidium).
Chemical-Free Process
Chemical removal filtration to reduce volatile chemicals and odors while improving taste. Sediment, dirt, and grit removal to 5 microns.
- Visual & Audible Lamp Life Monitor
- Filter Housing Drain Plug
- Countdown Timer
- Chemical-Free Process
- Durable, Long-lasting coated UV lamps w/ceramic bases
- 304 SS LPHO-based system
- Constant Current Electronic Controller
- Most effective disinfection method that produces bacteria-free water
- Drinking water maintains its natural minerals
- 99.9999% destruction of bacteria, virus (E.coli and Coliform) and protozoan cysts (giardia lamblia and cryptosporidium)
- 304 Stainless Steel polished construction – no corrosion
- Simple install and set-up
- Lamp change reminder timer that tells you when to replace ultraviolet lamp to maintain bacteria-free water
- Minimal maintenance and low operating costs
- 5-micron sediment filtration with a 1’’ filter housing for easy installation and removal
- 3-year unlimited warranty except for consumables

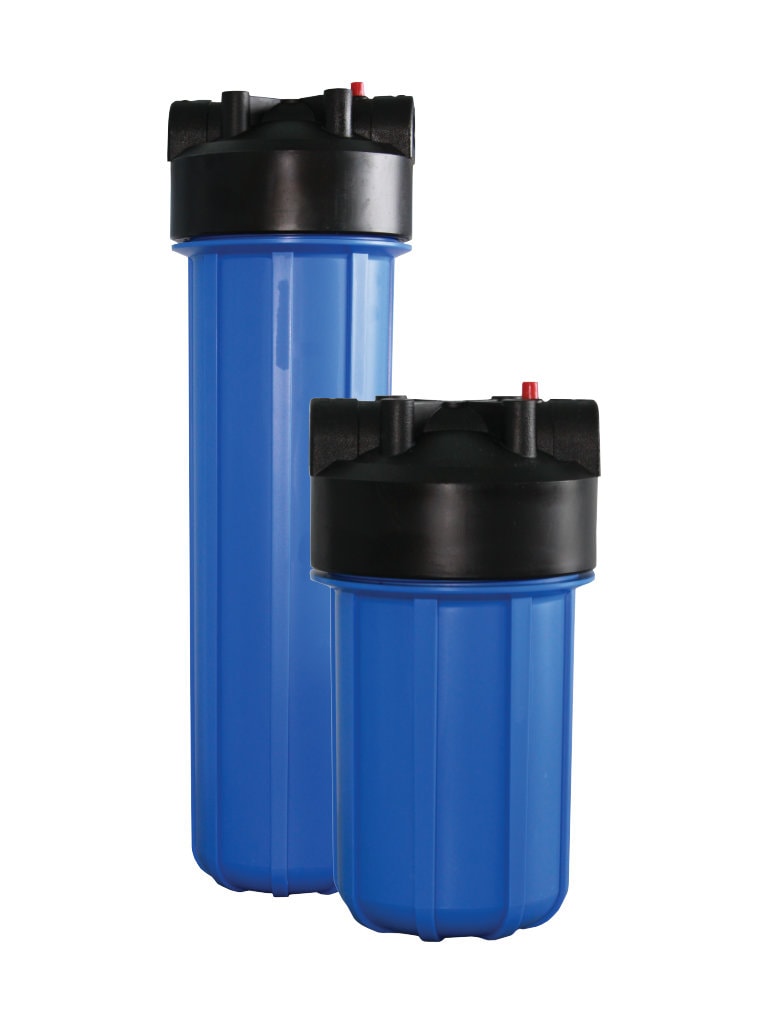

Jumbo Filter Housings
Housings for the Premium Ultraviolet Disinfection System support high flow or heavy turbidity applications.
High Flow Rate
Support flow rates up to 40 USGPM.
Easy Cartridge Replacement
- Available in 10” and 20” lengths
- Pressure release for easy cartridge replacement
- Double O-Ring seal that is leakproof
- Maximum operating pressure 85 PSI (5 BAR)
- Maximum operating temperature 100˚F (37˚C)
- Burst pressure over 500 PSI (30 BAR)
- Blue sumps with black caps and pressure release
- FNPT pipe threads

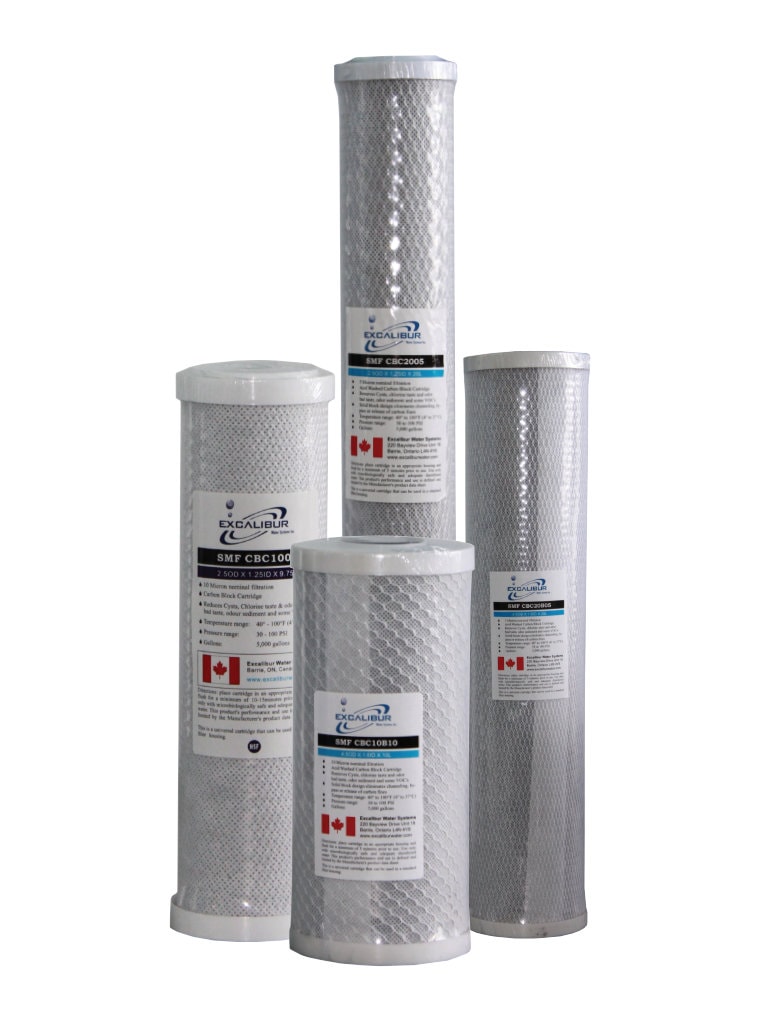

Acid Washed Coconut Shell Carbon Block Cartridges
Chemical filtration cartridge made from acid-washed coconut shell carbon provides premium filtration.
Highly Effective Filter
Removes chlorine, chloramines, tastes, odors, and most volatile chemicals with an enhanced dirt-holding capacity.
12-Month Filtration
Filters water effectively for up to 12 months.
- Acid Washed Coconut Shell Carbon Cartridge
- Premium high capacity removes bad taste & odor, chlorine, chloramines, and volatile chemicals
- Enhanced dirt-holding capacity

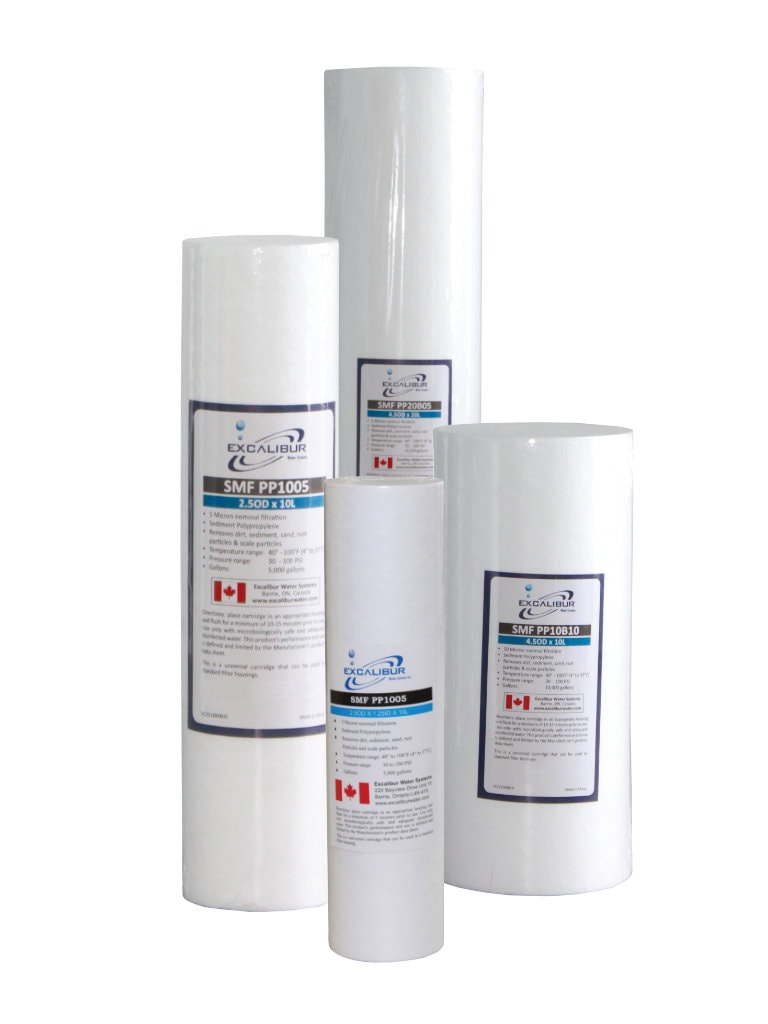

Melt Blown Polypropylene Cartridges / Standard and Jumbo
Sediment filtration cartridge made from 100 percent polypropylene fibers providing excellent chemical resistance and is not prone to bacteria contamination.
Removes Dirt and Grit
Removes dirt, grit, sand, rust, and other suspended matter.
Removes Dissolved Sediment
Removes dissolved sediment providing water purity.
- 100 percent polypropylene fibers
- Polypropylene cartridges form a true density for premium filtration
- 40˚F to 100˚F (4˚ C to 37˚ C) operating temperatures
- 30 to 100 PSI operating range (2 BAR to 6 BAR)
- Polypropylene cartridges remove dirt, grit, sand, rust, suspended matter, and turbidity
To see the full line of Excalibur residential Ultraviolet Sterilizer Systems, please visit the Excalibur Water Systems website or contact us for more information!
