Commercial / Industrial Reverse Osmosis Systems
- FLOW RATES FROM 1 - 2000 USGPM
Questions?
Excalibur’s Commercial Reverse Osmosis Systems remove both dissolved inorganics and particulate matter (if present).
When pure water is needed, Excalibur Reverse Osmosis systems remove salts, chemicals, and organics from the water supply. In cases where the water supplied contains excessive levels of impurities, additional water treatment will increase the lifetime and/ or reduce the maintenance required on the reverse osmosis system in place.

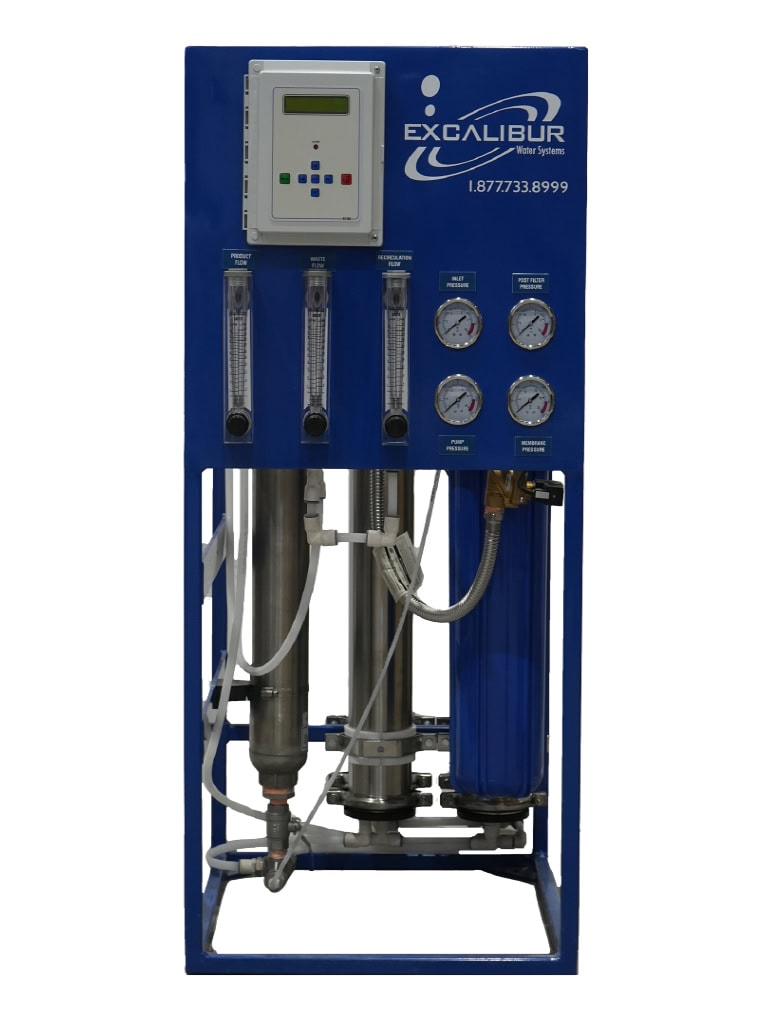

Sureflo® C100 Series Reverse Osmosis Systems
Lite commercial high purity reverse osmosis system.
Flow rates from 1.2 to 3.3 USGPM. For larger flow rates, see the Excalibur Water Systems website.
Removes chemicals & organics
Chemicals, heavy metals, and organics are all removed from your water.
Reduces TDS making high purity water
Reduces both dissolved inorganics and particulate matter, making high purity water.
- Flow rates designed on temperatures of 25°C or 77°F
- System design flow rates from 1.2 to 3.3 GPM
- Painted Carbon free-standing Reverse Osmosis frame
- Stainless steel high pressure booster pump
- 3/4” NPT Slim Line high pressure prefilter housing with 250 psi burst pressure, pressure release, 125 psi maximum operating pressure, 20” long
- 4 ½ “ x 20 “ 5 micron polypropylene replacement cartridge filter
- 3/4” Burkert solenoid valve
- 0 – 150 psi 4” stainless steel oil filled pressure gauge for post-filter pressure
- 0 – 300 psi 4” stainless steel oil filled pressure gauge for Reverse Osmosis thin film composite membranes
- Flow controls: Product, Waste, and Recycle
- Wastewater recycling reduces wastewater costs by up to 80 percent
- Stainless steel 4” x 40” Reverse Osmosis membrane housings c/w Noryl end cap
- 4” x 40” low energy thin film composite high purity Reverse Osmosis membranes
- Liquifit high pressure tubing and fittings
- Microprocessor Controller provides standard functions of the controller are monitoring or control of:
- Reverse Osmosis high pressure pump motor
- Inlet solenoid valve
- Automatic flush solenoid valve
- Low feed pressure switch
- Reverse Osmosis storage tank level switches
- Product water TDS/Conductivity Meter
- Water Temperature
- Pretreatment lockout
- Operating hours
- Reverse Osmosis tank full override
- 120/240 vac 15 + 10% 50/60 Hz 25 watts
- Operating temperature 40°F to 120°F
- Enclosure 8.25” x 5.0” x 3.0” (209mm x 127mm x 76mm) Nema 4x

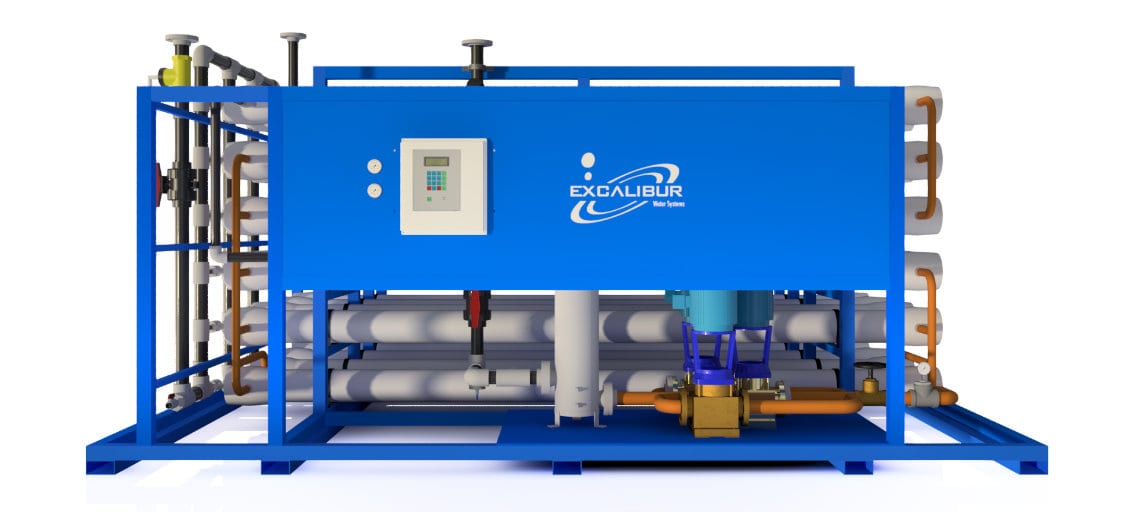

Sureflo® SFIN Series High Capacity Reverse Osmosis Systems
Commercial high purity reverse osmosis system.
Flow rates up to 1000 USGPM. For larger flow rates, contact Excalibur Water Systems.
Removes chemicals & organics
Chemicals, heavy metals, and organics are all removed from your water.
Removes clear water iron
Reduces TDS making high purity water
- Flow rates to 1000 USGPM
- Salt rejection rate over 99 percent NSF
- 75 percent permeate recovery from feed water
- Performance data calculated by ROSA software
- Low pressure membranes reduce pump HP
- CSA / ESA / UL Certified
- Series 200 or 250 controller for automated process
- Vertical multistage pump for boosting pressure
- Diaphragm valve for pre-treatment lockout
- Hall effect electronic flow meters with live reading LED displays
- TDS and PH sensor monitoring and display

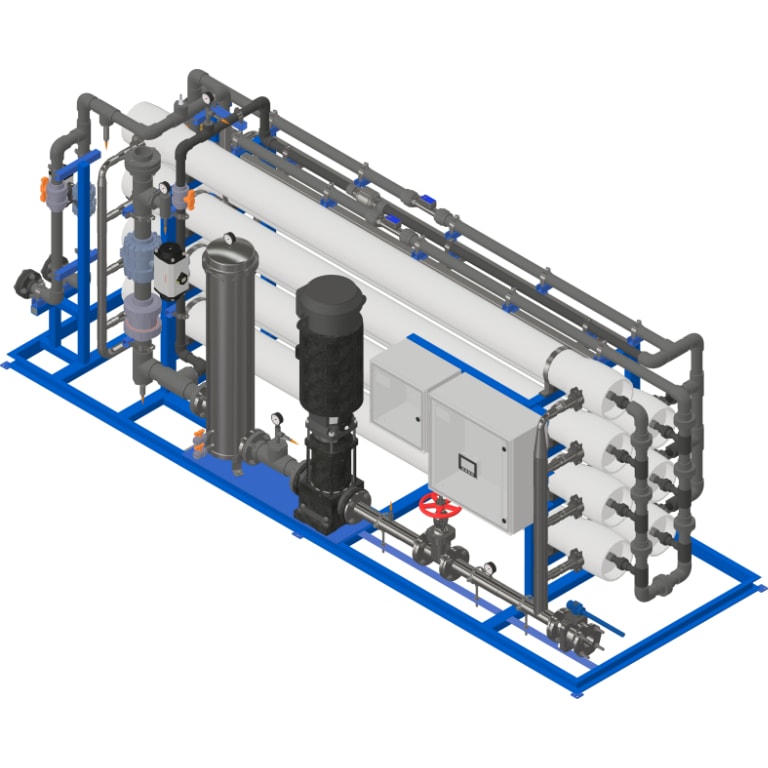

Excalibur Industrial Reverse Osmosis Systems
Excalibur Water Systems Industrial Reverse Osmosis Systems are a highly effective water treatment process that can reduce up to 97-99% of total dissolved solids for industrial process water applications.
An industrial reverse osmosis system is utilized in processes including food & beverage, power generation, boiler feeds, oil & gas production, high-purity water generation, central sterilization, and manufacturing processes.
Controlled utilizing PLC with touch screen HMI, pneumatic or motorized valves with limit switch, magnetic and ultrasonic flow meters, pressure transducers, conductivity, pH instrumentation, high-pressure stainless-steel pressure pump with 5-micron sediment turbidity filtration, TFC membranes application based, with high recovery designs.
Industrial Reverse Osmosis Industry Applications:
- Boiler Feed / Makeup Water
- Cooling Tower
- Mining
- Power Generation
- Laboratories
- Manufacturing Process Water
- Chemical Process Water
- Pharmaceutics
- Photographic Processing
- Printing
- Dairy
- Ice Making
- Humidification
- Drinking Water
- Cosmetics
- Food and Beverage Processing
- Vehicle Washing
- Horticulture
- Electronics
- Metal Finishing
To see the full line of Excalibur commercial / industrial Reverse Osmosis Systems, please visit the Excalibur Water Systems website or contact us for more information!
